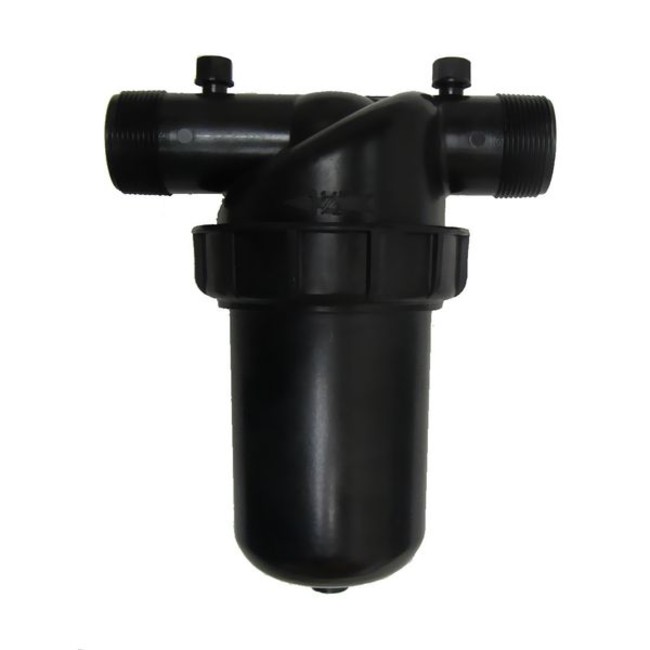

Arkal Disc Filter Arkal Disc Filters are washable pre-filters that will extend the life of the filters that follow it. If your water is visibly dirty then adding a disc filter as a first stage is highly recommended. Arkal Water Filtration Systems operate using a specially designed disc filtration technology. Thin, colour-coded polypropylene discs are diagonally grooved on both sides to a specific micron size. A series of these discs are then stacked and compressed on a specially designed spine. When stacked, the groove on top runs opposite to the groove below, creating a filtration element with a statistically significant series of valleys and traps for solids. The stack is enclosed in a corrosion and pressure resistant housing. During the filtration process, the filtration discs are tightly compressed together by the spring's power and the differential pressure, thus providing high filtration efficiency. Filtration occurs while water is percolating from the peripheral end to the core of the element. Benefits: -Removes large sediment from water -55um Filtration -Easy to install -40mm Connection -Easy to maintain -No need for replacement cartridgesKeep in mind:-The disc filter does not filter the water finely enough for bacteria or heavy metals 40mm / 1.5" Disc Filter

Specifications Pressure Maximum (m): 100 PSI Flow rate Maximum (m3/h) for 55um: 5.6 Filtration Area (cm2): 308 Filtration Volume (cm3): 370 Outer Diameter of Filter Element (mm): 70 Temperature Rangew (Degrees Celcius): -1
- 70 PH Range: 4-11 What's in the box FilterShop Washable Arkal Disc Filter 40mm (55um)
